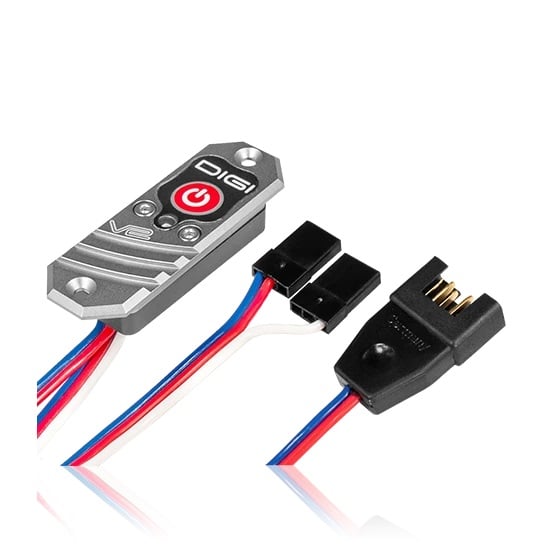

Powerbox DigiSwitch V2 MPX Connectors

Description The PowerBox DigiSwitch V2 is the second generation of the PowerBox DigiSwitch, which is well-known throughout the world. For almost fifteen years the PowerBox DigiSwitch has represented the standard for small to medium-sized models thanks to its compact format and versatility. By using the latest components we have been able to reduce the size of the Digi-Switch V2 by about 20 %. The introduction of a top-quality aluminium case, machined and anodised, has brought a substantial increase in the unit’s cooling efficiency, with the result that the maximum continuous current capacity of the PowerBox DigiSwitch V2 is around 20 % higher. In fact, the peak load capacity is twice as high: the DigiSwitch V2 can handle more than 10 A for several seconds! The DigiSwitch V2 offers four user-selectable output voltages: for normal servos it can be set to a regulated 6.0 V, regulated voltages of 7.0 V and 7.6 V are available for HV servos, as is an option for non-regulated voltage. Power to the unit can be drawn from four different battery types: LiPo, LiIon, LiFePo, NiMH. Ultra-bright RGB LEDs are fitted to indicate battery voltage; they light up in various colours to display the charge status of the batteries. CORE users also benefit from one special additional feature: the battery voltage and regulator voltage can be displayed directly at the transmitter via telemetry! Powerbox DigiSwitch V2 Features High-performance electronic switch Ultra-light unit, compact format Regulated output voltage Redundant switch and regulator circuitry User-selectable output voltage: 6.0 V/7.0 V/7.6 V or non regulated Separate RGB LED voltage indicators for each battery Telemetry support for CORE systems Supports 4 different battery types: 2s LiPo, 2s LiIon, 2s LiFePo and 5s NiMH Regulator monitoring Suppression of servo feedback currents Powerbox DigiSwitch V2 Technical Data Operating voltage: 4.0V - 9.0V Power supply: 2s LiPo, 2s LiIon, 2s LiFePo, 5s NiMH Current drain Power-on state: 23 mA Current drain Standby: 4 μA Maximum load current: max. 10 A Drop-out voltage: 0.1 V Output voltage: 6.0 V/ 7.0 V/7.6 V stabilised or non-regulated Dimensions: 50 x 18 x 11 mm Weight: 15 g Temperature range: -30 °C to 75 °C
