T Motor Antigravity MN5008 KV340

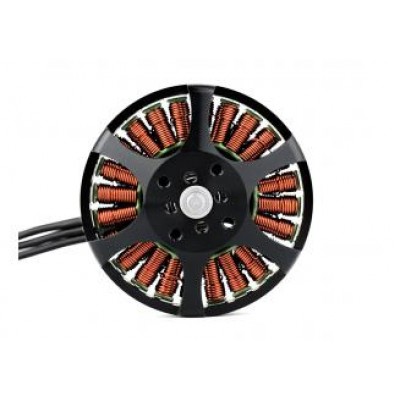

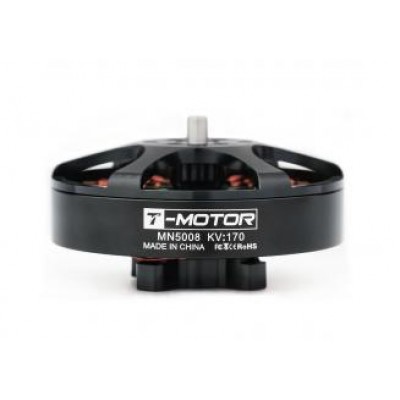

T-MOTOR MN5008 UAV Motor (KV340) – Overview The T-MOTOR MN5008 KV340 is a high-performance brushless motor designed for professional UAV and VTOL applications. It delivers strong power, high efficiency, and stable flight performance. Therefore, it is ideal for aerial photography, surveying, mapping, and rescue operations. In addition, the motor features an ultra-lightweight design. As a result, it helps extend flight time while maintaining smooth and reliable control. Key Highlights Ultra-lightweight and high-efficiency design Supports long flight duration Up to 60 minutes flight time (optimized setup) Smooth operation with low cogging torque Key Features The MN5008 KV340 uses high-quality imported materials and advanced engineering. Therefore, it ensures consistent and long-lasting performance. High slot space winding for improved efficiency High-temperature resistant magnets for stable output Imported 696ZZ bearings for smooth operation Anti-rust stator with heat-resistant coating High-temperature copper wire (180°C rated) Centrifugal cooling design for better heat management Technical Specifications General Specifications Motor Size: Φ55.6 × 32 mm Configuration: 24N28P Shaft Diameter: 6 mm Lead Cable: 80 mm Cooling System: Centrifugal cooling KV340 Variant This version is optimized for 6S setups. Therefore, it provides a balance of power and efficiency for medium to heavy UAVs. Rated Voltage: 6S LiPo Internal Resistance: 55 mΩ Idle Current (22V): 0.9 A Peak Current (180s): 35 A Max Power (180s): 760 W Motor Weight: 135 g Performance Overview The MN5008 KV340 delivers stable thrust across different throttle levels. In addition, it maintains good efficiency during long flights. Therefore, it works well for endurance and heavy-lift applications. Moreover, the advanced cooling system reduces heat buildup. As a result, the motor performs consistently even during extended use. Recommended Setup ESC Recommendation: AIR 40A Propeller Recommendation: 17–18 inch carbon fiber propellers Applications Multi-rotor drones VTOL UAV systems Aerial photography and cinematography Surveying and mapping Rescue and inspection operations Package Includes 1 × T-MOTOR MN5008 KV340 Motor 1 × Hardware pack   Technical Drawing
