T-Motor Antigravity MN5008 400KV

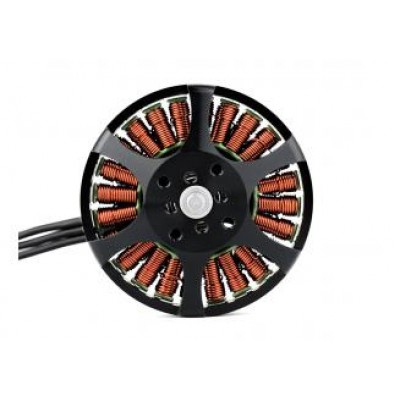

T-MOTOR MN5008 UAV Motor (KV400) The T-MOTOR MN5008 KV400 is a high-performance brushless motor designed for professional UAV and VTOL applications. It delivers strong power, high efficiency, and stable flight performance. Therefore, it is ideal for aerial photography, surveying, mapping, and rescue operations. In addition, the motor features an ultra-lightweight design. As a result, it helps increase flight time while maintaining smooth and reliable control. Key Highlights Ultra-lightweight and high-efficiency design Supports long flight durations Up to 60 minutes flight time (with optimized setup) Smooth operation with low cogging torque Key Features The MN5008 uses high-quality imported materials and advanced engineering. Therefore, it ensures consistent and long-lasting performance. High slot space winding for better efficiency N52 high-temperature magnets for stable output Imported 696ZZ bearings for smooth rotation Anti-rust stator with high-temperature coating High-temperature copper wire (180°C rated) Centrifugal cooling design for heat control Technical Specifications General Specifications Motor Size: Φ55.6 × 32 mm Configuration: 24N28P Shaft Diameter: 6 mm Lead Cable: 80 mm Cooling System: Centrifugal cooling KV400 Variant This version is optimized for 6S setups. Therefore, it provides a balance of power and efficiency for medium to heavy UAVs. Rated Voltage: 6S LiPo Internal Resistance: 50 mΩ Idle Current (22V): 1.1 A Peak Current (180s): 35 A Max Power (180s): 800 W Motor Weight: 132 g Technical Drawing
