T Motor Antigravity MN6007II KV320

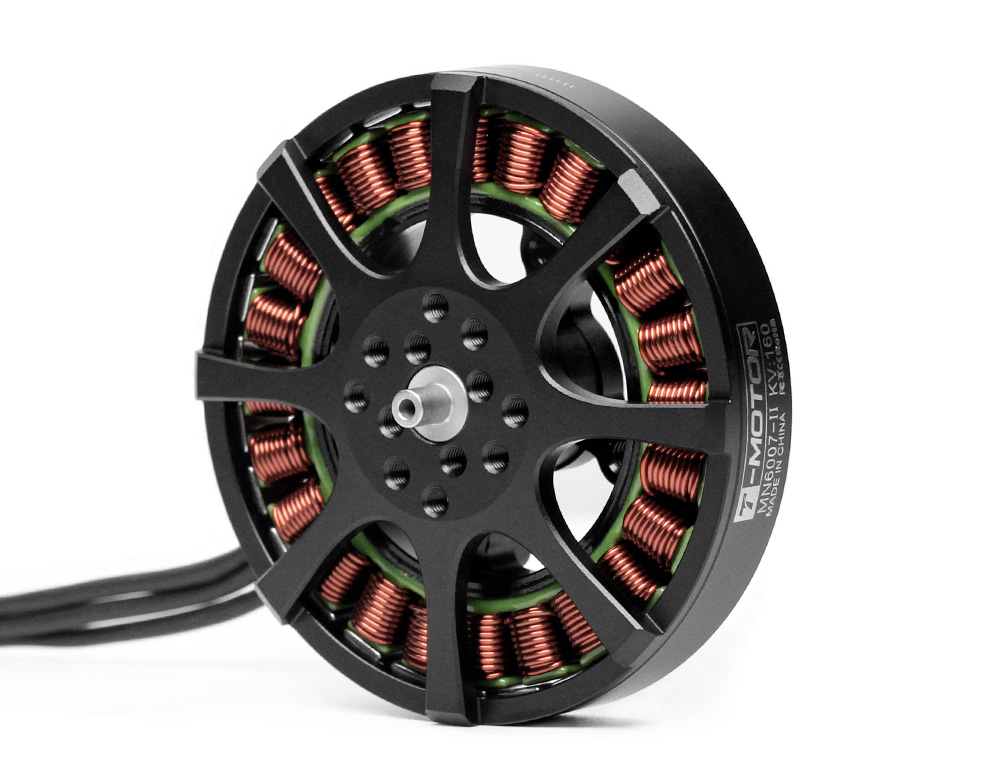

T-MOTOR MN6007 II UAV Motor (KV160 / KV320) – Overview The T-MOTOR MN6007 II is a high-performance brushless motor designed for professional UAV and VTOL applications. It delivers strong thrust, high efficiency, and stable performance. Therefore, it is ideal for demanding tasks such as aerial photography, mapping, and industrial drone operations. In addition, the motor features a lightweight design. As a result, it helps increase flight time while maintaining excellent power output. Key Highlights Flight time up to 50 minutes Maximum thrust up to 5.5 kg Lightweight and efficient design Smooth operation with low cogging torque Key Features The MN6007 II uses high-quality materials and precision engineering. Therefore, it offers reliable and long-lasting performance. High slot space winding for better efficiency N52 high-temperature magnets for stable output NSK bearings for smooth rotation Anti-rust stator coating for durability High-temperature copper wire for safety and performance Precision balancing for reduced vibration Technical Specifications General Specifications Motor Size: Φ67.2 × 26.1 mm Configuration: 24N28P Shaft Diameter: 6 mm (in) / 4 mm (out) Lead: Enameled wire (70 mm) KV160 Variant This version is designed for higher voltage systems. Therefore, it is suitable for long-endurance flights. Rated Voltage: 12S LiPo Internal Resistance: 178 mΩ Idle Current (18V): 0.5 A Peak Current (180s): 23.7 A Max Power: 1120 W Weight: 159 g Technical Drawing Package Includes 1 × T-MOTOR MN6007 II Motor (KV160 or KV320 as selected) 1 × Hardware Pack
